TryonUIPlugin API Reference

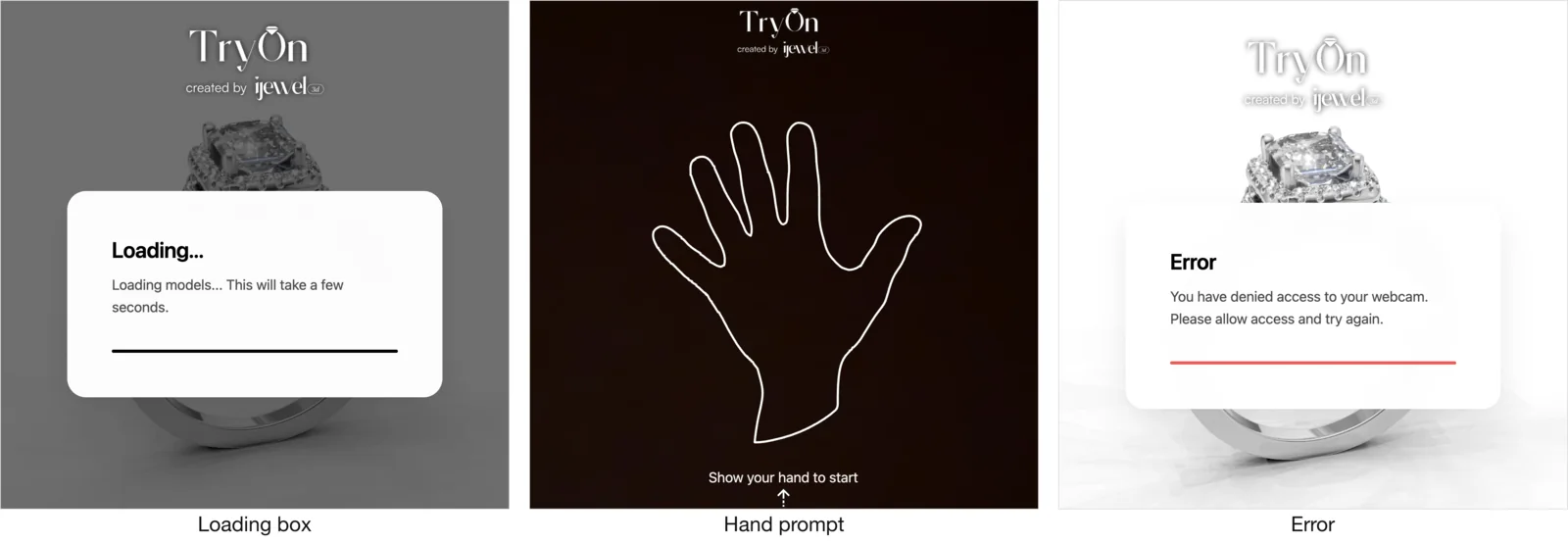

TryonUIPlugin is the ready-made overlay for the try-on session. It listens to RingTryonPlugin and renders three things over the canvas:

• a loading box with a title, optional subheader, optional logo and a progress bar, shown while hand tracking initialises;
• a hand prompt - an outlined hand and a line of copy - once try-on is live but no hand has been detected yet;
• error messages for every camera and startup failure the plugin can report.

Using it is optional. Everything it does can be built from the plugin's events, but it saves you writing loading and error states for a dozen camera failure modes.

const tryon = await viewer.addPlugin(ij_vto.RingTryonPlugin);
await viewer.addPlugin(ij_vto.TryonUIPlugin);

Add it after the try-on plugin

TryonUIPlugin looks for a try-on plugin on the viewer when it is added, and throws if there isn't one. Always add RingTryonPlugin first.

Alias

The plugin is exported both as ij_vto.TryonUIPlugin and as ij_vto.RingTryonUIPlugin. They are the same class - the second name exists for older integrations.

Configuring

Pass a config to the constructor, or update it later with configure(). Both take a deep-partial object that is merged onto the defaults, so you only specify what you want to change.

await viewer.addPlugin(new ij_vto.TryonUIPlugin({
  loading: {
    title: "Preparing your try-on",
    subText: null,                          // hide the subheader
    logo: "https://example.com/logo.svg",
    align: "center",
    background: "#111",
    textColor: "#fff",
    progressColor: "linear-gradient(90deg, #c9a227, #f0d878)",
  },
  handPrompt: {
    text: "Show the back of your hand",
  },
}));

configure(partial)

Merges a partial config onto the current one and re-applies it to the live DOM immediately - safe to call while try-on is running.

const ui = viewer.getPlugin(ij_vto.TryonUIPlugin);

// Switch to a different message mid-session.
ui.configure({ handPrompt: { text: "Move your hand a little closer" } });

config

The full, resolved config object. Read it to inspect current values; mutate through configure() so changes reach the DOM.

enabled: boolean

Set to false to suppress the whole overlay without removing the plugin.

loading

The box shown while hand tracking initialises.

Property	Type	Default	Description
enabled	boolean	true	Render the loading box at all. Set to false if you show your own loading state.
title	string	"Loading..."	Main heading.
subText	string | null	"Loading models..."	Subheader. null or '' hides it.
logo	string | null	null	Logo above the title. Either an image URL / data-URI, or a raw SVG or HTML string.
size	'card' | 'half' | 'full'	'card'	Preset box size - a centered card, roughly half the container, or a full-canvas overlay.
width	string | null	null	Explicit CSS width, e.g. '320px' or '60vw'. Takes precedence over size.
align	'start' | 'center' | 'end'	'start'	Horizontal alignment of logo, title and subheader.
background	string	white, near-opaque	Any valid CSS background value.
textColor	string	'#000000'	Title colour.
subTextColor	string	'#4a4a4a'	Subheader colour.
showProgressBar	boolean	true	Show the progress bar.
progressColor	string	dark gradient	CSS colour or gradient for the progress fill.

// Full-bleed dark loading screen with a logo and no subheader.
ui.configure({
  loading: {
    size: "full",
    align: "center",
    background: "#0b0b0b",
    textColor: "#ffffff",
    subText: null,
    logo: "https://example.com/logo-light.svg",
  },
});

handPrompt

The overlay shown once try-on is live but no hand has been detected yet.

Property	Type	Default	Description
enabled	boolean	true	Show the prompt.
text	string | null	"Show your hand to start"	Prompt copy. null or '' leaves just the outline.
showHandOutline	boolean	true	Draw the outlined hand graphic.
handSvg	string	built-in outline	Replace the outline with your own SVG markup.
color	string	near-white	Colour of the prompt text.

showHandPrompt() / hideHandPrompt()

Show or hide the prompt imperatively. showHandPrompt() respects handPrompt.enabled and does nothing when the prompt is disabled.

// Text-only prompt, no outline.
ui.configure({
  handPrompt: { showHandOutline: false, text: "Hold your hand up to the camera" },
});

messages

Every user-facing string the plugin can display. Override any subset - for translation, or to match your store's tone.

Property	Description
initialization	Loading title (mirrors loading.title).
initializationSubText	Loading subheader.
error.noSupport	The browser has no webcam API.
error.permissionDenied	The user declined camera access.
error.startupFailed	Initialisation failed for a non-camera reason.
error.mediaDevicesError	Generic camera start failure.
error.runtimeError	Try-on failed while already running.
error.abortError	Camera access was aborted.
error.invalidStateError	The page was inactive when access was requested.
error.notFoundError	No camera matched the requested constraints.
error.notReadableError	The camera is in use by another application.
error.overconstrainedError	The camera can't satisfy the requested settings.
error.securityError	Camera access is blocked by security settings.
error.typeError	The camera request was rejected as invalid.
error.unknown	Fallback for unrecognised failures.
error.unknownCameraError	Fallback for unrecognised camera failures.

// Localise the strings users are most likely to see.
ui.configure({
  messages: {
    initialization: "Chargement…",
    initializationSubText: "Préparation de l'essayage virtuel.",
    error: {
      permissionDenied: "Vous avez refusé l'accès à la caméra. Autorisez-le puis réessayez.",
      notReadableError: "Votre caméra est utilisée par une autre application.",
    },
  },
});

Full example

const tryon = await viewer.addPlugin(ij_vto.RingTryonPlugin);

const ui = await viewer.addPlugin(new ij_vto.TryonUIPlugin({
  loading: {
    title: "Preparing your try-on",
    subText: "This takes a few seconds the first time.",
    logo: "https://example.com/logo.svg",
    size: "full",
    align: "center",
    background: "#0b0b0b",
    textColor: "#ffffff",
    subTextColor: "#a0a0a0",
    progressColor: "linear-gradient(90deg, #c9a227, #f0d878)",
  },
  handPrompt: {
    text: "Show the back of your hand",
    color: "#ffffff",
  },
}));

await tryon.start();
