RingTryonPlugin API Reference

RingTryonPlugin is the try-on engine. It takes over the WebGi viewer while running: it opens the camera, tracks the user's hand, and places the loaded ring model on the chosen finger with matching occlusion, shadows and reflections.

It is a standard WebGi plugin, so everything you already know about plugins applies - addPlugin, getPlugin, fromJSON / toJSON, addEventListener.

const tryon = await viewer.addPlugin(ij_vto.RingTryonPlugin);

await tryon.start();

Where the plugin comes from

The plugin lives on the ij_vto global from the web-vto bundle, not on webgi. See Include Packages for the script tags.

Adding the plugin

viewer.addPlugin(ij_vto.RingTryonPlugin, options?)

Option	Type	Default	Description
preload	boolean	true	Start downloading the hand-tracking model and WASM runtime as soon as the plugin is added, instead of on the first start(). Makes starting feel instant, at the cost of a background download every page view.

// Defer the download until the user actually presses the try-on button.
const tryon = await viewer.addPlugin(ij_vto.RingTryonPlugin, { preload: false });

RingTryonPlugin.preload()

Static. Warms the same assets without adding the plugin - useful to trigger on hover or when a product page scrolls into view.

ij_vto.RingTryonPlugin.preload();

RingTryonPlugin.PluginType

Static. The string "RingTryonPlugin", for viewer.getPluginByType(...) and for the type field when calling fromJSON.

Lifecycle

async start()

Starts try-on. Prompts the user for camera access, initialises hand tracking, and switches the viewer from turntable mode into the live camera view.

Must be called from a user gesture - browsers only grant camera access in response to a click or tap.

startButton.onclick = () => tryon.start();

async stop(force = false)

Stops try-on, releases the camera and restores the viewer to its normal 3D state. Pass force: true to tear down even if the plugin is mid-start.

get running: boolean

true between a successful start() and the matching stop(). Use it to drive a toggle button.

async pause() / async resume() / async togglePause()

Freezes the camera feed while keeping try-on active, so the user can inspect a still frame, then resumes the live view. Cheaper than a full stop/start cycle.

get paused: boolean

Whether the feed is currently frozen.

Camera

async flipCamera()

Switches between the front (user) and rear (environment) camera. On devices with only one camera this is a no-op - check paused/running before offering the control.

selectNextCamera()

Cycles through every camera the browser reports, rather than just flipping the facing mode. Falls back to flipCamera() when the device list can't be resolved. Useful on desktops with several webcams.

async setVideoSize(x: number, y: number)

Requests a specific camera resolution. Lower values reduce tracking cost on weak devices.

videoScale: number

Zoom applied to the camera feed itself. Default 1.35.

cameraZoom: number

Zoom applied to the 3D camera. Default 1.

Placement

finger: number | string

Which finger the ring sits on. Accepts a Finger index (0–4) or a name - any string containing thumb, index, middle, ring or pinky (case-insensitive). Anything unrecognised falls back to the ring finger.

tryon.finger = "index";
tryon.finger = 3;                       // ring finger
tryon.finger = (tryon.finger + 1) % 5;  // cycle

Set it after start()

The setter needs a loaded model and a live hand tracker, so it silently does nothing before start() resolves. Apply your default finger straight after starting, not while wiring up the page.

Reading it back always returns the numeric index:

Index	Finger
0	Thumb
1	Index
2	Middle
3	Ring (default)
4	Pinky

The default can also be baked into the model - set finger in the model's userData in the editor and the plugin picks it up on load.

getJewelryScreenPosition()

Returns the ring's current anchor as { x, y } in canvas CSS pixels, or null if it isn't on screen. Use it to pin your own HTML overlay - a size label or a tooltip - to the ring as it moves.

const pos = tryon.getJewelryScreenPosition();
if (pos) {
  label.style.transform = `translate(${pos.x}px, ${pos.y}px)`;
}

resetInteractionZoom()

Cancels the automatic zoom-in that happens after the hand has been tracked steadily, returning to the default framing.

Setup mode

Setup mode is the authoring tool used to position a model on a reference finger. It is normally driven from the editor UI, but is available programmatically.

enterSetupMode(options?): boolean

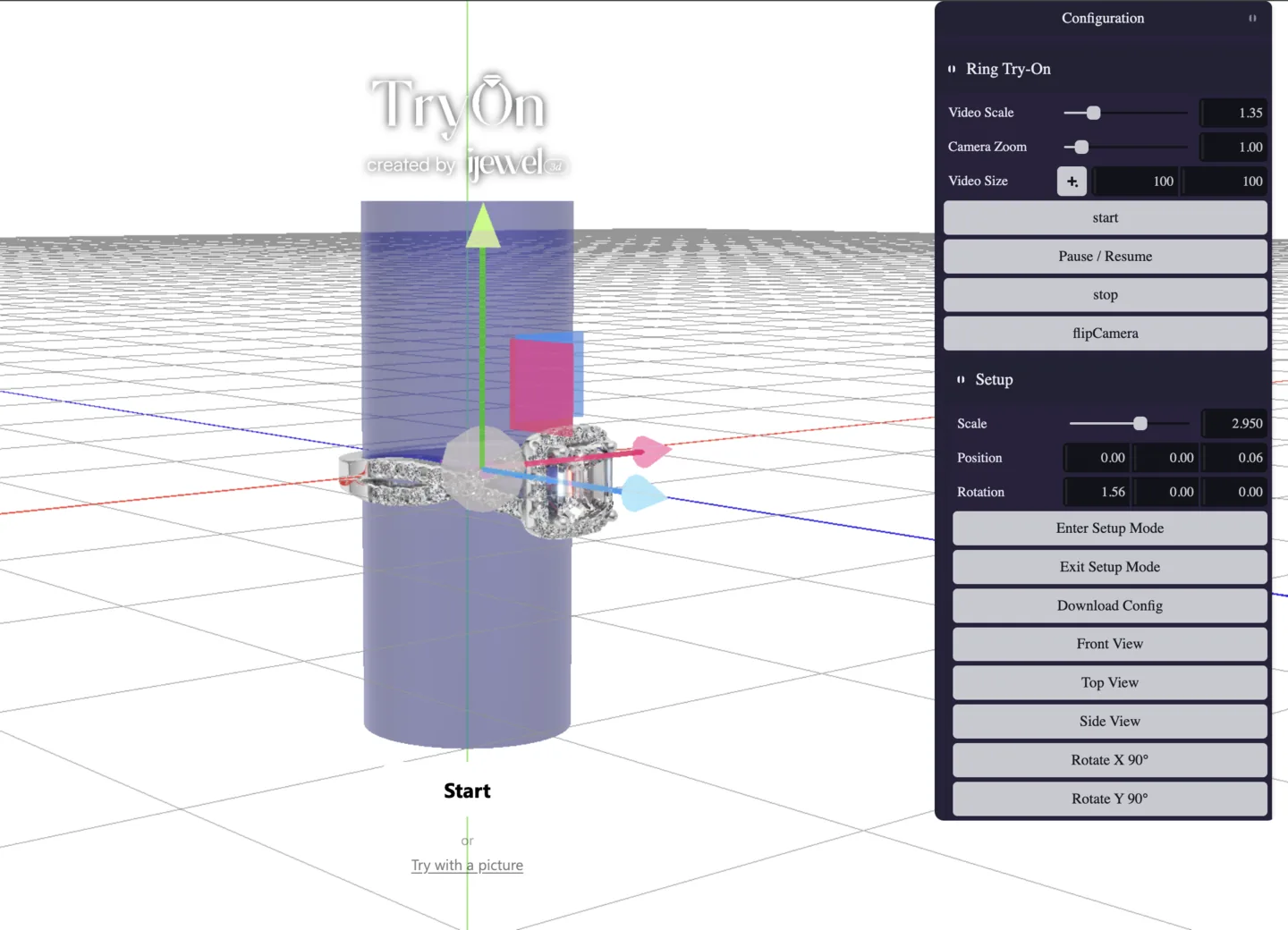

Suspends try-on and shows the reference finger cylinder, the center-line plane and a transform gizmo. Returns false if the plugin is currently running or starting.

Option	Type	Default	Description
showGizmos	boolean	true	Create the transform gizmo but keep it hidden. It reappears on the next transform-mode change.

exitSetupMode(): boolean

Leaves setup mode and restores the camera position saved on entry.

inSetupMode: boolean

Whether setup mode is currently active.

See Edit Mode for the full authoring workflow, including exporting the resulting JSON.

Configuration

Placement and visual settings live on grouped config objects. Every field is serialized, so toJSON() / fromJSON() round-trip them - this is exactly how the settings authored in the editor reach the plugin at runtime.

// Apply settings authored in the editor.
tryon.fromJSON({ ...tryonConfig, type: ij_vto.RingTryonPlugin.PluginType });

// Or set individual values.
tryon.setup.modelScaleFactor = 1.1;
tryon.contactShadow.intensity = 0.45;

setup - model placement

Property	Type	Default	Description
modelScaleFactor	number	1	Uniform scale applied to the model.
modelPosition	Vector3	(0,0,0)	Position offset.
modelRotation	Vector3	(0,0,0)	Rotation offset in radians.

These three are also mirrored directly on the plugin as modelScaleFactor, modelPosition and modelRotation.

Radians here, degrees in tracking

setup.modelRotation is applied straight to the model's Euler rotation, so it is in radians - the editor converts for display. The separate tracking.offsetRotation is in degrees. Use MathUtils.degToRad() when you have a degree value for modelRotation.

contactShadow - shadow where the ring meets the finger

Property	Type	Default	Description
enabled	boolean	true	Draw the contact shadow.
intensity	number	0.6	Shadow strength.
distance	number	0.15	How far the shadow reaches from the ring.
smoothness	number	0.55	Softness of the shadow edge.
angle	number	0	Light direction in screen space, in degrees. 0 puts the light above.
elevation	number	70	Light elevation toward the camera, in degrees. 90 is head-on, casting no visible shadow.
skinWarmth	number	0.1	Warm halo bleeding into the shadow, approximating light scattering in skin.
color	Color | string	black	Tint added inside the shadow.

ssao - ambient occlusion and skin shading

Property	Type	Default	Description
enabled	boolean	false	Enable ambient occlusion.
intensity	number	0.2	Occlusion strength.
radius	number	1.07	Sampling radius.
falloff	number	0.33	How quickly occlusion fades with distance.
smoothEnabled	boolean	true	Blur the occlusion result.

ssr - screen-space reflections

Property	Type	Default	Description
enabled	boolean	true	Reflect the hand and surroundings in the metal.
intensity	number	1.5	Reflection strength.
radius	number	2	Ray-march radius.
tolerance	number	5	Depth tolerance when matching a reflection hit.

environmentReflection

Property	Type	Default	Description
enabled	boolean	true	Apply the scene environment map to the ring while in try-on.
scale	number	1.67	Environment scale.
stretch	number	2.675	Environment stretch.

motionBlur

Property	Type	Default	Description
enabled	boolean	false	Blur the ring along its motion as the hand moves.
intensity	number	1.5	Blur strength.
edgeSmear	number	0.2	How far the blur smears past the ring's edges.

interactionZoom

After the hand has been tracked steadily for a moment, the view zooms in on the ring automatically.

Property	Type	Default	Description
enabled	boolean	true	Enable the automatic zoom.
targetScale	number	1.5	Zoom level to settle at.
delayMs	number	1000	Delay before the zoom starts.
durationMs	number	1250	Length of the zoom animation.

tracking - advanced tuning

Defaults suit most catalogues; change these only when a model consistently sits wrong.

Property	Type	Default	Description
minHandDistance	number	10	Hide the ring when the hand is farther than this.
snappiness	number	0.9	Tracking responsiveness. 0 is heavily smoothed, 1 is instant and jittery.
locationOffset	number	0.65	Where along the finger segment the ring sits.
offsetScale	number	1	Multiplier on the detected finger width - effectively ring size.
offsetPosition	Vector3	(0,0,0)	Extra position offset applied every frame.
offsetRotation	Vector3	(0,0,0)	Extra rotation offset in degrees, mirrored for the left hand.
zOffset	number	-3.25	Depth offset from the finger surface.
worldZFactor	number	1	Scaling applied along the depth axis.

Events

Standard WebGi events - subscribe with addEventListener(type, handler).

Event	Detail	Fired when
start	{}	start() was called and initialisation has begun.
initializationProgress	{ progress }	Loading progress, 0–1. Drive your own progress bar with this.
initialized	{}	Tracking is live and the ring is ready to appear.
interaction	{}	The hand has been tracked steadily - this is what triggers the automatic zoom.
stop	{}	Try-on has stopped and the camera is released.
error	{ reason, error, isCameraError? }	Something failed. See below.

Handling errors

tryon.addEventListener("error", ({ detail }) => {
  if (detail.isCameraError) {
    showMessage("We couldn't access your camera.");
  } else {
    showMessage("Try-on couldn't start. Please try again.");
  }
  console.error(detail.reason, detail.error);
});

detail.reason is one of:

Reason	Meaning
startupFailed	Initialisation threw - not camera-related.
noSupport	The browser has no webcam API.
permissionDenied	The user declined camera access.
notFoundError	No camera matches the requested constraints.
notReadableError	The camera is in use by another application.
overconstrainedError	The camera can't satisfy the requested settings.
abortError	Camera access was aborted.
invalidStateError	The page was inactive when access was requested.
securityError	Camera access is blocked by browser or page security settings.
typeError	The camera request was rejected as invalid.
mediaDevicesError	Any other failure starting the camera.

Camera reasons arrive with isCameraError: true. TryonUIPlugin already renders a message for each of these - add your own handler only if you want different behaviour.

canRunVTO()

A standalone pre-flight check, exported alongside the plugin. Call it before showing a try-on button so users on unsupported hardware never hit a dead end. It creates and discards a throwaway WebGL context, so it's cheap enough to call on page load.

const result = ij_vto.canRunVTO();

if (!result.ok) {
  tryOnButton.remove();
  console.warn("Try-on unavailable:", result.reason, result.details);
} else if (result.warning) {
  console.warn(result.warning); // runs, but may be slow
}

Result

Field	Type	Description
ok	boolean	Whether try-on should be offered.
reason	string?	Present when ok is false. One of no_webgl2, weak_or_software_renderer, insufficient_cores, insufficient_memory.
warning	string?	Present when try-on will run but performance may suffer - for example an integrated GPU on Chrome for Windows.
details	object	What was measured: webgl2, renderer, vendor, cores, memoryGB. Worth logging for support.

Options

Option	Type	Default	Description
minCores	number	4	Minimum CPU cores. A reported 0 (browser withheld it) never fails the check.
minMemoryGB	number	4	Minimum device memory in GB, treated the same way.
weakRendererPatterns	RegExp[]	built-in list	Renderer strings to reject - software rasterisers and known-weak GPUs.
powerPreference	string	"high-performance"	Power preference used for the probe context.

// Be stricter than the defaults.
const result = ij_vto.canRunVTO({ minCores: 6, minMemoryGB: 8 });
